Gwneuthuriad Clamp Bale Revoling Forklift Economaidd

Material handling equipment lifting equipment bale clamp

economical forklift revoling bale clamp manufacturer

Ceisiadau


-Bale clamp efficiently and economically handle nearly any type of baled products including cotton, wool, synthetic, textile bales, corrugated, newsprint, rag, hay, metal and other scrap bales.

-High efficiency and economy to handle in without work platform condition.

Features & Advantages


-Proven durable T-beam arm aluminum frame construction.
-Superior braich-sleid dwyn ar gyfer bywyd gwasanaeth estynedig.
-Ribs provide secure grip and give driver good tip handling and bale spinning capabilities.
-Regenerative hydraulic valving for optimal arm speed.
-Gwelededd gyrrwr ardderchog.

forklift Bale clamp
economical forklift revoling bale clamp manufacturer

An important component of a product configuration


Hydraulic systems: the main control valve in the load to maintain valve adopts imported products; seals are imported products; high-pressure hose with cone seal, high-performance hose.

Structural parts: the left and right plates with Q460 high-performance steel plates, shaped by the overall pressure and correction.

Mechanical performance: Built-in lateral feature, you can also achieve clamping / opening and lateral function and good vision; additional oil line can meet the requirements of the two groups.

Application: can be effective and economic handling almost any form of software packages, such as cotton, wool, textiles, corrugated sheets, white paper, rags, hay, and other industrial debris.

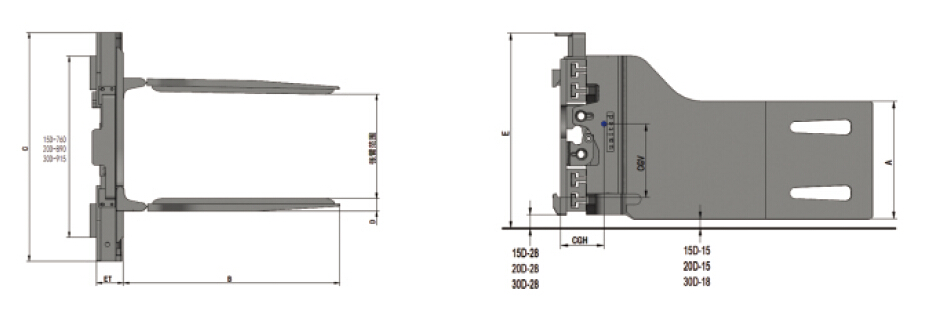

atalog
Gorchymyn Rhif.
Capasiti
@load
center
(Kg@mm)
Mowntio
Dosbarth
Agoriadol
Ystod
(mm)
Available
Fforch godi
Arm Height (mm)
Braich
Length (mm)
Frame width
(mm)
Overall height
(mm)
Pwysau
(Kg)
Effeithiol
Trwch
 (mm)
RJ19RT-A1
800@500
445-1670
1-2.5t
420
996
1040
796
580
198
RJ25RT-A1
2500@500
600-1880
2-2.5t
460
1200
1010
769
750
259
RJ30RT-B1
2700@500
560-1850
3-4.5t
460
1200
1010
769
750
259

Nodyn
1, mae'r gallu tryc / cario gwirioneddol yn ffatri gynhwysfawr a gafwyd o'r fforch godi.
2, this is a matching increase in group 2 required additional forklifts require asphalt.

Fideos


Pwysau ar gyfer mesurydd llif


ModelPressure value(Bar)Flow value(L/min)
LeastMaxLateral movementClamping action
LeastRecommendMaximumLeastRecommendMaximum
RJ**RT35180192638192638

Rotating torque requirements


ModelCyflymderTorque
RJ19RT3.5r/min@38L/min4200N.m@160Bar
RJ25RT3.5r/min@38L/min9000N.m@160Bar
RJ30RT3.5r/min@38L/min9000N.m@160Bar

Manylion Cyflym


Man Tarddiad: Fujian, China (Mainland)
Brand Name: HUAMAI economical forklift revoling bale clamp manufacturer
Feature: Side shifting or rotating
Material: High strengthen steel
Certificates: ISO 9001:2000 & CE
Warranty: 12 months
Drive: Hydraulic control
Capacity: 2-6.5 tons
Mounting class: II-IV




,
