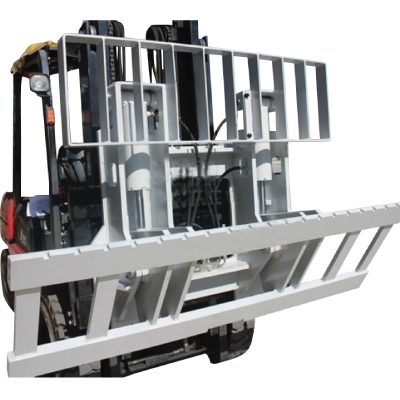

Atodiadau Hydrolig Fforch godi Fforch colfachog

Nodweddion

---

Proven durable construction design, overall frame work adopts full steel structure, high strength, can meet the needs of high strength work.

Body hinger, using polymer composite bushing,hardness is twice as general copper sleeve!fully extended busing life!Because of its self-lubricating fuction without regular filling grease can avoids rapid wear of the lining sleeve for the pin shaft fracture failure.

Good field of vision, safe and reliable.

Fideos

---

Manyleb

---

Capacity @ Load Center (kg @ mm)	Model	Carriage Width (mm)	Truck Mounting Class	Hinged Forks Mounting Class	Overall Height (mm)	Tilt Forward / Tilt Backward	Weight (kg)	Trwch Effeithiol (mm)	Canolfan Disgyrchiant Llorweddol (mm)
2000 @ 500	HFB20D-001A	1040	II	II	955	45° / 25°	320	310	132
2500 @ 500	HFB25D-002A	1040	II	II	955	45° / 25°	320	390	132
3000 @ 500	HFB30D-003A	1100	III	III	968	45° / 25°	335	325	132
3500 @ 500	HFB35D-002B	1100	III	III	1175	45° / 25°	400	383	132
4000 @ 500	HFB40D-003B	1100	III	III	1388	45° / 25°	480	395	195
4500 @ 500	HFB45D-004B	1450	III	III	1388	45° / 25°	800	425	195

Nodyn

---

Sicrhewch gapasiti gwirioneddol y fforch godi ac atodiadau gan y gwneuthurwr fforch godi,

One/Two sets additional oil circuit required on forklift

Can be customized according to customer requirements of various width.

Cysylltwch â'r gwerthiannau gan HUAMAI

Model	Llif Min.Hydraulic (L / min)	Arg. Llif Hydrolig (L / mun)	Llif Max.Hydraulic (L / min)	Arg. Pwysedd Hydrolig (Bar)
HFB	19	38	57	35

Opsiwn

---

Ffyrc
Bucket
Heighten load backrest

Cais

---

Hinged forks are safe and efficient to dump bulk cargo container ; Configurated with bucket to shovel all loosen goods such as sand, coal, grain, fertilizer, sod and the blocks, ect.

Manylion Cyflym

---

Man Tarddiad: Fujian, China (Mainland)
Enw Brand: HUAMAI
Model Number: HFB20D-001A
Product Name: Hinged fork forklift
Type: HFB20D-001A
Dosbarth Mowntio: II
Carriage Width (mm): 1040mm
Overall Height (mm): 955mm
Tilt Forward / Tilt Backward: 45° / 25°
Weight (kg): 320kg
Effective Thickness (mm): 310mm
Horizontal Center of Gravity (mm): 132mm
Hinged Forks Mounting Class: II

---



Ymlyniad Fforch colfachog
