Offer Trin Deunydd 2ton TB cyfres rholio paled llawlyfr pentwr paled ffolder clamp rholio papur

Hafan / Pob Atodiad / Offer Trin Deunydd 2ton TB cyfres rholio paled llawlyfr pentwr paled ffolder clamp rholio papur

Offer Trin Deunydd 2ton TB cyfres rholio paled llawlyfr pentwr paled ffolder clamp rholio papur

Product Details


1-2ton electric pallet stacker

ELECTRIC PALLET STACKER FEATURE
TB series steering wheel pallet stacker, rated load capacity:1000-2500kg, Max. lift height: 4500mm, used for single face pallet;
1. With EPS steering system, easier to operation;
2. Electronic type braking;
3. To use intelligent charger,auto analysis the residual energy and optimizing the charging process, without manual operation and extend the battery working life effectively;
4. Speed limited for high position, to aviod the possibility of products' overturning when high speed in high position;
5. High strength overhead guard to protect the operator.

Product Parameters


Disgrifiad
Electric pallet stacker ( TB model)
Load capacity Kg
1000
1500
2000
Max. lifting height mm
1600
2500
5500
Wheel type
Polyurethane solid tire
Polyurethane solid tire
Polyurethane solid tire
Outside turning radius mm
1720
1720
1720
Min. intersecting aisle(1000*1000pallet)mm
2450
2450
2450
Battery V/Ah
24/210
24/210
24/210
Fork size(LxW)mm
1150*190
1150*190
1150*190

Product Introduction

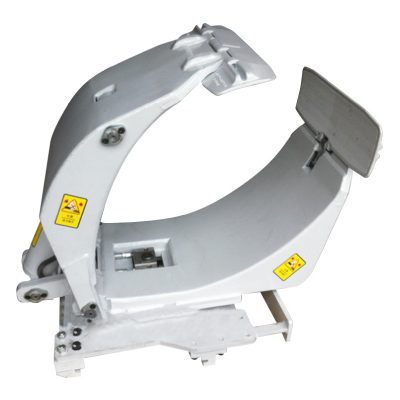

Electric straddle stacker with paper roll clamp
Noelift brand straddle electric pallet stacker with paper roll clamp. optional clamp: bale clamp, drum rotator

Manylion Cyflym


Cyflwr: Newydd
Man Tarddiad: Fujian, China (Mainland)
Enw Brand: HUAMAI
Model Number: TB20
Math: Tryc Pallet wedi'i Bweru
Souce Power: Modur AC
Rated Loading Capacity: 2000kg
Max. Lifting Height: 3500mm
Min. Lifting Height: 1600mm
Fork Length: 1150mm
Fork Width: 190mm
Overall Dimensions: 2455mm*1270mm*2080mm
Certification:CE, ISO9000,GOST
Gwasanaeth Ôl-werthu a Ddarperir: Cefnogaeth trydydd parti tramor ar gael
Wheel type:Polyurethane solid tire
Charger V/A: 24/30
Battery V/Ah: 24/210
electric pallet stacker type: standing operate
electric pallet stacker brake: electric brake system
2ton electric stacker controller: American CURTIS
2ton electric stacker brake: electromagnetic brake
2ton electric stacker mast: single/duplex/thriplex ma




, ,
