Clampiau Braich Bar Symud Ochr Gyda Fforch-godi

Nodweddion

---

-Proven durable arm and aluminum frame construction ensuring long useful life of the clamp.
-Superior arm-slide material and design for extending bearing life
-Regenerative hydraulic valve for optipal arm speed
-Rounded bar nose prevents product damage
-Easily accessable valve body and cartridge check valve

Manyleb

---

Cynhwysedd (kg)	Math	Dosbarth Mowntio	Ystod Agoriadol (mm)	Bar Arm Length (mm)	Lled Ffrâm A. (mm)	Overall Height(mm)	Pwysau (kg)	Trwch Effeithiol ET (mm)	Canolfan Disgyrchiant Llorweddol HCG (mm)
1600@600	BAS20D-001A	II	170-1400	70	1040	665	420	178	380
2300@600	BAS50D-001B	III	485-1830	80	1016	710	450	216	250
2300@600	BAS50D-002B	III	200-1545	80	1016	710	470	216	250

Nodyn

---

Sicrhewch gapasiti gwirioneddol y fforch godi ac atodiadau gan y gwneuthurwr fforch godi,

Cysylltwch â'r gwerthiannau gan HUAMAI

Cais

---

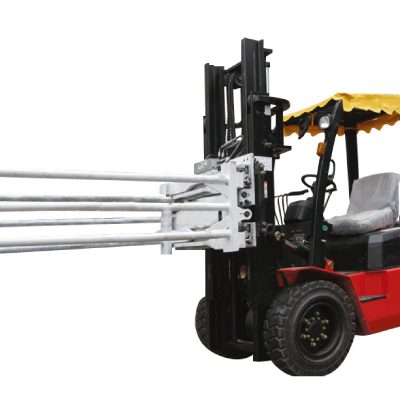

Forklift Bar Arm Clamps designed for textile industry.
Forklift Bar Arm Clamps are used for handling rolls of material such as towels, linens, denim.
The round bar arms of the of bar clamps can either cradle single and multiple rolls between the arms, or enter the core to handle the roll.
The round surface and end of the bar arms eliminate any tearing, snagging and puncturing of the cloth material that may occur with standard froks.

Manylion Cyflym

---

Man Tarddiad: Fujian, China (Mainland)
Enw Brand: HUAMAI
Model Number: CFS20D-001A
Product Name: Bar arm clamps
Type: BAS20D-001A
Dosbarth Mowntio: II
Opening Range: 170-1400mm
Frame Width: 1040mm
Overall Height(mm): 665mm
Weight: 420kg
Effective Thickness(mm): 178mm
Horizontal Center of Gravity (mm): 380mm
Bar Arm Length (mm): 70mm

---



Clampiau Braich Bar Ar gyfer Fforch-godi
