Disgrifiad o'r Cynnyrch
1. Applications:

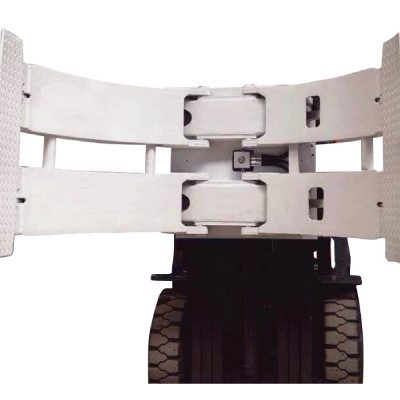

Forklift Paper Roll Clamp,as one kind of material handling equipment meeting the needs of industries from stevedoring to printing for damage free roll handling with maximum efficiency.
2. Nodweddion:
-Thin arm profile and smooth arm greatly eases roll breakout and permits close stacking.
-Continuous 360 degree rotation,any angle position of lock function,revolving positing 90degree or 180 degree.
-Hydraulic retention of cylinder valves is to ensure reliable lamping of long distance transportation.
3. Specifications of Paper Roll Clamp material handling equipment
Capasiti | Rholio | Catalog | Math | Mowntio | Mowntio | Hir | Byr | Hir | Pwysau | Effeithiol | Llorweddol |
Ystod | Gorchymyn Rhif. | Dosbarth | Ongl | Braich | Braich | Braich | Trwch | Canolfan | |||
Trwch | Hyd | Trwch | Disgyrchiant | ||||||||
(kg) | (mm) | A (mm) | C (mm) | B (mm) | (kg) | ET (mm) | CGH (mm) | ||||
1200 | 410-1300 | RCF15F-013A | A. | II | 0 ° | 790 | 580 | 330 | 354 | 135 | 221 |
1300 | 330-1150 | RCF15F-014A | A. | II | 0 ° | 685 | 515 | 330 | 343 | 135 | 216 |
1100 | 450-1500 | RCF15F-015A | A. | II | 1.5° | 890 | 680 | 330 | 435 | 150 | 270 |
1000 | 560-1600 | RCF15F-016A | A. | II | 1.5° | 940 | 730 | 330 | 455 | 150 | 290 |
2000 | 250-1300 | RCP20F-001A | A. | II | 0 ° | 825 | 570 | 45 | 677 | 197 | 287 |
2000 | 250-1300 | RCP20F-001B | B. | III | 0 ° | 825 | 570 | 45 | 690 | 237 | 325 |
2000 | 630-1300 | RCF20F-002A | A. | II | 0 ° | 825 | 570 | 45 | 667 | 197 | 282 |
2000 | 630-1300 | RCF20F-002B | A. | III | 0 ° | 825 | 570 | 45 | 681 | 237 | 320 |
2000 | 250-1500 | RCP20F-003A | B. | II | 0 ° | 955 | 775 | 95 | 751 | 197 | 283 |
2000 | 250-1500 | RCP20F-003B | B. | III | 0 ° | 955 | 775 | 95 | 765 | 237 | 307 |
2000 | 530-1500 | RCF20F-004A | A. | II | 0 ° | 955 | 775 | 95 | 744 | 197 | 280 |
2000 | 530-1500 | RCF20F-004B | A. | III | 0 ° | 955 | 775 | 95 | 758 | 237 | 304 |
2000 | 630-1600 | RCF20F-005A / B. | A. | II / III | 0 ° | 955 | 775 | 95 | 755 | 183/216 | 301 |
2000 | 350-1600 | RCP20F-006A / B. | B. | II / III | 0 ° | 955 | 775 | 95 | 765 | 183/216 | 304 |
1700 | 680-1830 | RCF20F-007A | A. | III | 0 ° | 1130 | 930 | 115 | 880 | 239 | 445 |
1700 | 380-1830 | RCP20F-008B | B. | III | 0 ° | 1130 | 930 | 115 | 886 | 239 | 445 |
2700 | 330-1350 | RCP30F-009B | B. | III | 0 ° | 850 | 570 | 65 | 759 | 198 | 272 |
2700 | 590-1350 | RCF30F-012B | A. | III | 0 ° | 850 | 570 | 65 | 752 | 198 | 272 |
2700 | 250-1520 | RCP30F-011B | B. | III | 0 ° | 955 | 685 | 50 | 830 | 198 | 307 |
2700 | 560-1520 | RCF30F-010B | A. | III | 0 ° | 955 | 685 | 50 | 823 | 198 | 307 |
2000 | 250-1300 | RCS20D-001A | C. | II | 0 ° | 825 | 560 | 45 | 717 | 197 | 269 |
2000 | 250-1300 | RCS20D-001B | C. | III | 0 ° | 825 | 560 | 45 | 731 | 237 | 307 |
2700 | 250-1300 | RCS30D-002A | C. | II | 0 ° | 845 | 570 | 70 | 854 | 203 | 277 |
2700 | 250-1300 | RCS30S-002B | C. | III | 0 ° | 845 | 570 | 70 | 858 | 198 | 272 |
3500 | 250-1520 | RCP35F-001B | B. | III | 0 ° | 1000 | 670 | 65 | 1190 | 218 | 320 |
3500 | 250-1520 | RCP35F-001C | B. | IV | 0 ° | 1000 | 670 | 65 | 1199 | 218 | 320 |
3500 | 610-1520 | RCF35F-002B | B. | III | 0 ° | 1000 | 670 | 65 | 1180 | 218 | 320 |
3500 | 610-1520 | RCF35F-002C | B. | IV | 0 ° | 1000 | 670 | 65 | 1190 | 218 | 320 |
2700 | 360-1830 | RCP35F-003B | B. | III | 0 ° | 1165 | 810 | 65 | 1289 | 218 | 353 |
2700 | 360-1830 | RCP35F-003C | B. | IV | 0 ° | 1165 | 810 | 65 | 1298 | 218 | 353 |
2700 | 635-1830 | RCF35F-004B | A. | III | 0 ° | 1165 | 810 | 65 | 1280 | 218 | 353 |
2700 | 635-1830 | RCF35F-004C | A. | IV | 0 ° | 1165 | 810 | 65 | 1289 | 218 | 353 |
4000 | 250-1300 | RCP35F-007B | B. | III | 0 ° | 875 | 575 | 65 | 1146 | 218 | 295 |
4000 | 250-1300 | RCP35F-007C | B. | IV | 0 ° | 875 | 575 | 65 | 1155 | 218 | 295 |
4000 | 560-1300 | RCF35F-008B | A. | III | 0 ° | 875 | 575 | 65 | 1137 | 218 | 295 |
4000 | 560-1300 | RCF35F-008C | A. | IV | 0 ° | 875 | 575 | 65 | 1146 | 218 | 295 |
4100 | 250-1520 | RCP45F-001C | B. | IV | 0 ° | 965 | 680 | 85 | 1294 | 198 | 310 |
4100 | 530-1520 | RCF45F-002C | A. | IV | 0 ° | 965 | 680 | 85 | 1285 | 198 | 310 |
3400 | 360-1830 | RCP45F-003C | B. | IV | 0 ° | 1105 | 815 | 85 | 1385 | 198 | 338 |
3400 | 660-1830 | RCF45F-004C | A. | IV | 0 ° | 1105 | 815 | 85 | 1376 | 198 | 338 |
2700 | 450-2200 | RCP45F-005C | B. | IV | 0 ° | 1305 | 915 | 85 | 1490 | 198 | 380 |
2700 | 850-2200 | RCF45F-006C | A. | IV | 0 ° | 1305 | 915 | 85 | 1480 | 198 | 380 |
4500 | 250-1300 | RCP45F-007C | B. | IV | 0 ° | 900 | 565 | 85 | 1242 | 198 | 284 |
4500 | 560-1300 | RCF45F-008C | A. | IV | 0 ° | 900 | 565 | 85 | 1233 | 198 | 284 |
4. Options and Accessories:
Custom designed opening ranges.
Positioned short arm or fixed short arm.
Split long arm.
Special pads
Ein Manteision
Pam ein dewis ni fel cyflenwr dibynadwy neu weithio fel deliwr lleol gyda ni?
Tîm technegol 1. Profiadol, gwasanaeth mwy proffesiynol
Mae HUAMAI yn cynnwys tîm o aelodau sydd â blynyddoedd o brofiad gyda wagenni fforch godi Ewropeaidd a'i atodiadau.
2. Amrediad cynnyrch eang, dyluniad personol, darparu datrysiad llwyr
Mae HUAMAI wedi tyfu'n gyflym i fod yn gwmni sylweddol sy'n arbenigo mewn cynhyrchu ystod gynhwysfawr o atodiadau hydrolig a mecanyddol. Mae'r prif gategorïau o atodiadau hydrolig yn cynnwys math cylchdroi, math braich llithro, math symud ochr / colfachog, math pwrpas arbennig ac eraill.
3. Cefnogaeth â blaenoriaeth, os yw'n asiantaeth / deliwr
Os ydych chi'n ddeliwr lleol, yn gallu cyflawni cefnogaeth polisi asiant HUAMAI, gan gynnwys amser dosbarthu cyflym, pris cystadleuol a chymorth ategolion, ect.
4. Ffatri eich hun, pris cystadleuol
Mae ein ffatri'n cwmpasu ardal o 10,000 metr sgwâr, wedi'i chyfarparu'n llawn â chyfarpar a chyfleusterau gweithgynhyrchu modern. Ni fydd cynhyrchu graddfa a dim dynion canol yn arbed y gost prynu.
5. Cofnod gwerthu a llais gan ein cwsmer, sy'n profi ein perfformiad da
Manylion Cyflym
Man Tarddiad: Fujian, China (Mainland)
Enw Brand: HUAMAI
Model Number: HUAMAI-Hydraulic-1.7-4.5T Paper Roll Clamp
Capasiti: 1700-4500kg
Roll range: 250-1830mm
Mounting class: II/III/IV
Long arm length: 825-1305mm
Short arm length: 560-915mm
Long arm thickness: 45-115mm
Weight: 677-1490kg
Triniaeth arwyneb: Wedi'i beintio
Rhannau allweddol: O'r radd flaenaf
Gwarant: 12mms neu 2000 awr gweithio
